HMI-Boards & All-in Solutions

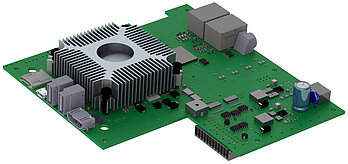

The GIN-HMI single-board computer is the basis for sophisticated hand-held terminals and panel PCs. The board is connected to an Indel master via GinLink and communicates with its integrated web server using Ethernet-over-GinLink.
GIN-HMI runs an optimized Linux operating system, containing among other things a fully-fledged HTML5-compatible web browser. This makes it easy and efficient to create user interfaces with existing HTML5 tools.
Handwheel, joysticks and control buttons are linked directly to the real-time interfaces of the Indel master. Displays are connected to the Linux system using an HDMI or LVDS interface. For other peripherals such as touchscreens, USB ports are available.
Request1 GHz dual-core i.MX6 CPU
HDMI and LVDS Interface
HTML5 Support
Facts
Fieldbus
1 × GinLink slave /
2 × GinLink slave
Display interfaces
1 × HDMI 1.4 – Full HD, 1920x1080
1 × LVDS, 1366x768
1 × Touch interface I2C / SPI
Serial ports
2 × USB 2.0 Type-A
Feedback
1 × digital-incremental
Analog Inputs
8 × single-ended ADC inputs
Digital In-/Outputs
20 × digital inputs 3.3 V
21 × digital outputs 40 V / 50 mA
Buzzer
83 dB acoustic pressure
CPU
1 GHz dual-core i.MX6D NXP
L2 cache
1 MByte
Memory
2 GByte SDRAM, DDR3-1066
Non-volatile memory
4 GByte eMMC
micro SD slot
Operating system
Linux (Yocto based)
Dimensions
30 × 150 × 140 mm (h × w × d)
Downloads/Links

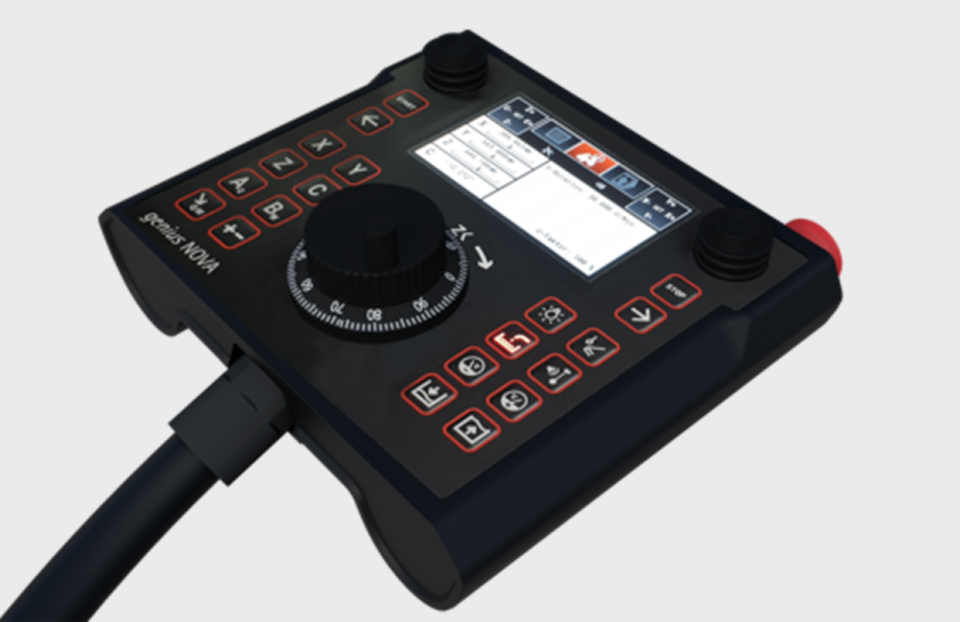

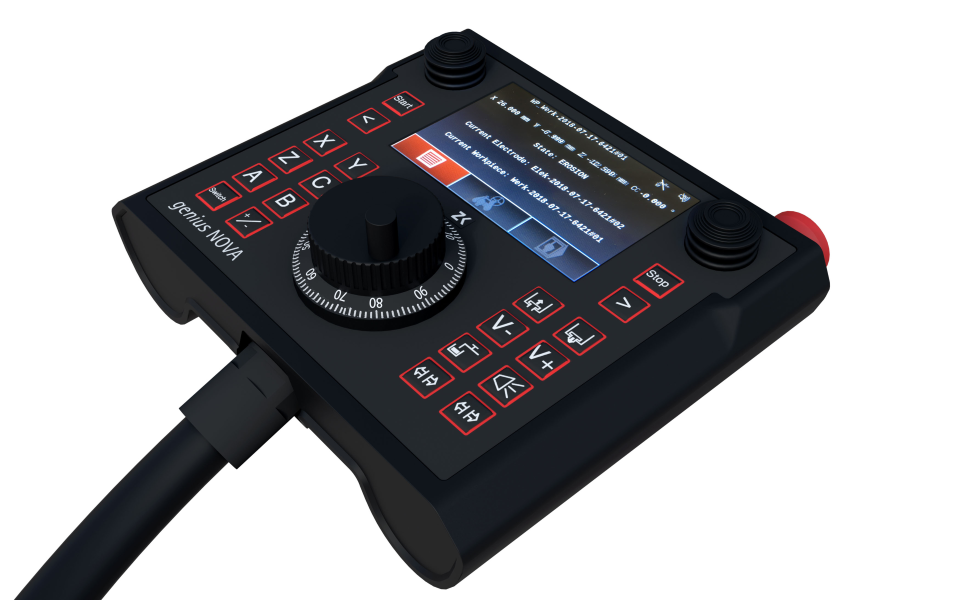

Zimmer & Kreim GmbH & Co. KG handheld terminal genius NOVA
- Ergonomically shaped
- Two approval buttons for left- and right-handers
- Large LCD display
- Digital handwheel for manual target positioning
- Connection cable of individual lenght
- Fully integrated 4 axes joystick control
