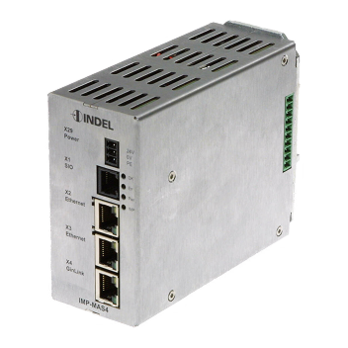

Modular-Peripheral-Masters
Label: IMP-MAS4 / IMP-MAS3
The IMP-MAS4 is a compact CPU board for use as a fieldbus master. The IMP-MAS4 can control additional I/O modules directly because of the integrated IMP-Bus (Indel Modular Peripherals) without the need of a fieldbus or fieldbus couplers. As the fieldbus master for the Indel GinLink, the IMP-MAS4 controls and coordinates all peripherals.
RequestGinLink Master
1.2 GHz Dual-Core PowerPC
1 GB DDR3-800 RAM
Facts
Interfaces
1 × GinLink
2 × Gigabit Ethernet
1 × InfoLink (Tx & Rx)
1 × SIO (RS232)
1 × IMP-Bus
CPU
1.2 GHz dual-core PowerPC
Freescale QorIQ P2020/P2010
Cache
L1: 32I/32D KByte per core
L2: 512 KByte
Memory
1 GByte DDR3-800 (400 MHz), 64 Bit
0.5 MByte MRAM
8 MByte Flash
Operating system
Indel-Realtime-OS (INOS)
Motion control
Max. 250 axes
Max. 32 kHz position update frequency
Dimensions
107 × 52 × 130 mm (h × w × d)
Options
IMP-Master / GinLink-Master
Label: IMP-MAS4 | Indel-Nr.: 611145700
- 1.2 GHz dual-core PowerPC CPU
- 1 GB DDR3, 8 MB Flash, 0.5 MB NVRAM, RTC
- SIO, 1 × Ethernet, 1 × GinLink, IMP-Bus
IMP-Master / GinLink-Master / INFO-Link-Master
Label: IMP-MAS4 | Option: INFO | Indel-Nr.: 611145720
- 1.2 GHz dual-core PowerPC CPU
- 1 GB DDR3, 8 MB Flash, 0.5 MB NVRAM, RTC
- SIO, 1 × Ethernet, 1 × GinLink, IMP-Bus, InfoLink
IMP-Master / GinLink-Master / POWERLINK-Master / EtherCAT-Master
Label: IMP-MAS4 | Option: INFO/PL | Indel-Nr.: 611145725
- 1.2 GHz dual-core PowerPC CPU
- 1 GB DDR3, 8 MB Flash, 0.5 MB NVRAM, RTC
- SIO, 1 × Ethernet, 1 × GinLink, IMP-Bus, 1 × Powerlink
or 1 × EtherCAT
IMP-Master / GinLink-Master
Label: IMP-MAS3 | Option: GIN | Indel-Nr.: 612058400
- 800 MHz dual-core ARM Cortex-A9 CPU
- 256 MB DDR-RAM, 8 MB NOR-Flash, 512 kB NVRAM, RTC
- SIO, 1 × Ethernet, 1 × GinLink, IMP-Bus
- 5V / 24V participant power supply
IMP-Master / INFO-Link-Master
Label: IMP-MAS3 | Option: INFO | Indel-Nr.: 612058425
- 800 MHz dual-core ARM Cortex-A9 CPU
- 256 MB DDR-RAM, 8 MB NOR-Flash, 512 kB NVRAM, RTC
- SIO, 1 × Ethernet, InfoLink, IMP-Bus
- 5V / 24V participant power supply
