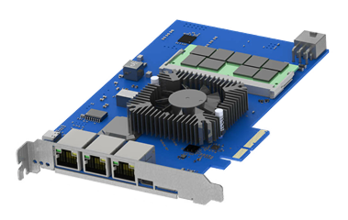

PC-Masters
Label: GIN-PCIe5

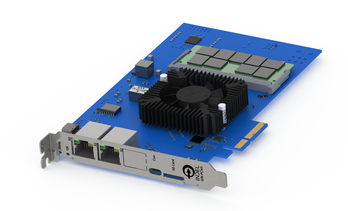

GIN-PCIe5 is a high-performance CPU board for use as a fieldbus master in the form of a PCIe plug-in card. Thanks to sophisticated CPU cooling, only a single PCIe 3.0 slot is required. The GinLink master is ideally suited for high-speed applications with high technical requirements.
RequestGinLink Master
1.8 GHz Quad-Core CPU
PCIe Gen 3.0
Facts
PCIe standard
PCIe Gen 3.0
1 × Four lane
< 25 watt power consumption
Interfaces
1 × GinLink
2 × Gigabit Ethernet
1 × USB-C (console only)
1 × microSD
CPU
ARM Cortex-A72
1.8 GHz quad core
Memory
8 GByte SDRAM, DDR4-2133
MRAM
0.5 MByte
Flash
16 MByte
Operating system
Indel-Realtime-OS (INOS)
Motion control
Max. 256 axes
Max. 32 kHz position loop
Length
180 mm
Options
PC-Master with quad core CPU
Label: GIN-PCIe5 | Option: 4x1.8G | Indel-Nr.: 612058540
- 1.8 GHz Quad-Core ARM Cortex-A72
- 2 × Gigabit-Ethernet
- 1 × USB-C (console only)
- 1 × microSD
